- Wood delamination test

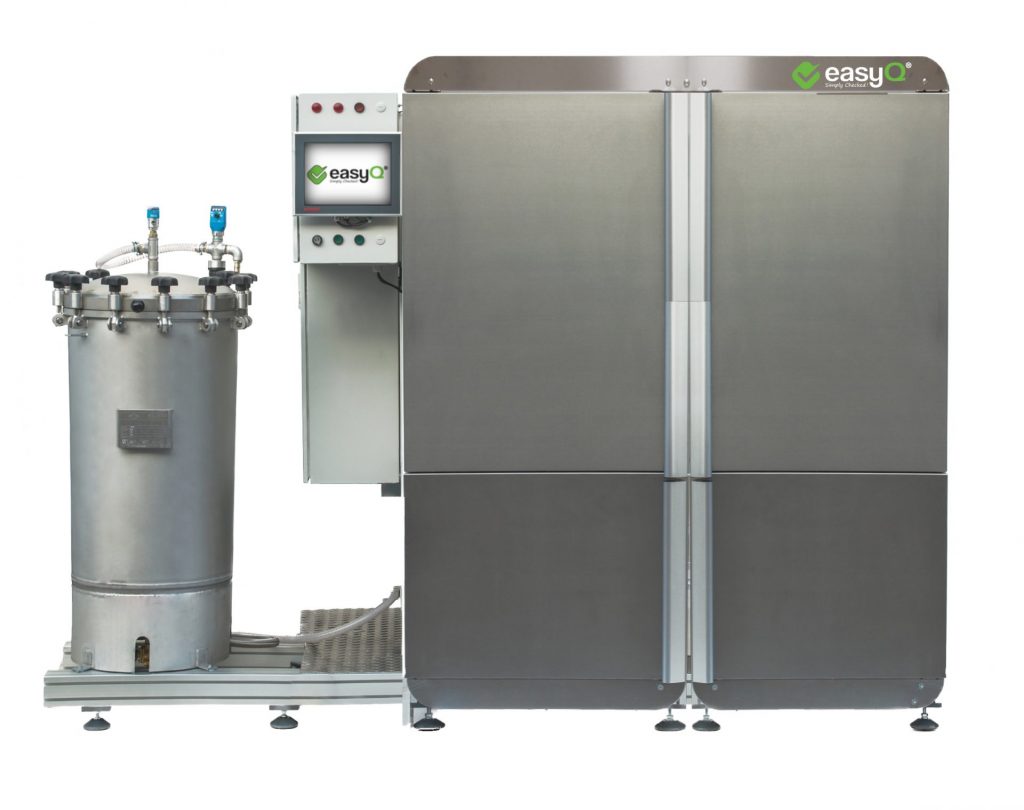

- eQ – CEXL
Weltweit führende, automatisierte
Delaminierungs Prüfanlage im XL Format für maximalen Durchsatz
- Gewicht: ab 500kg
- Tiefe: 205cm
- Breite: 308cm
- Höhe: 220cm
- Anschlüsse Werkseitig: Kaltwasser, 3-Phasen 220V
- Anschlüsse Kundenseitig:
- CE Konformität
- Material: Aluminium, Edelstahl
- Heizleistung: 9KW
Product Highlights
- Maximum drying volume for large plants
- Separate chamber control optional
- Fully automated test cycle
- Charting and Datalogging
- Boiler level monitoring
- Temperature and air humidity
- Air speed stepless adjustable
- Extremely silent and energy-saving
- Remote diagnosis via internet
- - Testing according to EN 14080 / 302 / 16351, JAS 235, ASTM D 2559, AS/NZS 1428, AITC T110 and freely programmable
- Extremely short teach-in times
Application areas
- CLT - Cross Laminated Timber
- Finger Joint
- GLT
Funktion
Equipment for delamination testing of adhesive joints. Watering of specimens in pressure / vacuum vessel. Drying in the drying oven in circulating air mode with PC climate control. The relative dimension of the open glue joint at the end of the test to the total glue joint length is an indicator of the quality of the adhesive joint and must not exceed specified limits.
Vacuum / pressure vessel
Stainless steel container with dome lid (autoclave), pump and control. The samples are placed in the autoclave, automatically filled with water and subjected to vacuum and pressure according to the applied standard. Vessel capacity 150 ltr. Electronic pressure detection, fully automatic cycle control.

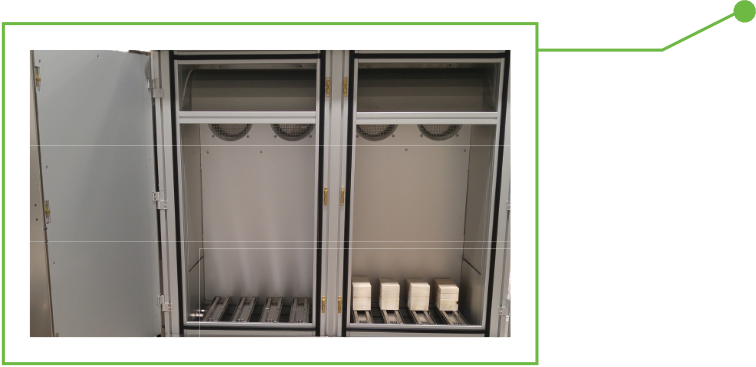

Drying cabinet
Drying cabinet with air circulation, heating, automatic humidification and climate control. 90 mm thermal insulation. PC control (Windows), system visualization and operation on color touch panel 10″. Test chamber capacity approx. 170 ltr. Air speed infinitely variable from 1-4 m/s, wind guide cassette.
Convenient loading through front door.
Minimal personnel required due to fully automatic operation and monitoring system. DIN/EN CE conform.
Prices & Offer
Individual offer
We will be happy to prepare a non-binding offer tailored to your needs.
