Option LFDM microscope

Determination of the glue joint thickness

The eQLab test stand can be optionally supplemented with a glue joint thickness measurement.

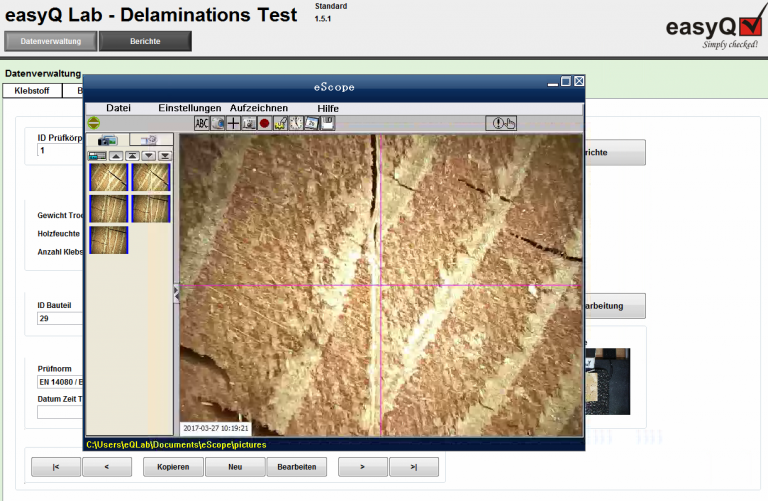

Components: USB handheld microscope magnification 1:200. easyQ software extension for measuring glue joint thickness on screen.

Measurement accuracy +/-0.1 mm.

Addition to the database so that the result of the measurement can be stored in the database and assigned to the component or test piece.

Addition of the glue joint thickness field to the reports.

Storage of the images.

Furthermore, live images are generated from the microscope, which can also be used to examine delaminations.

At the magnification of 1:200, the cell tubes are visible.
